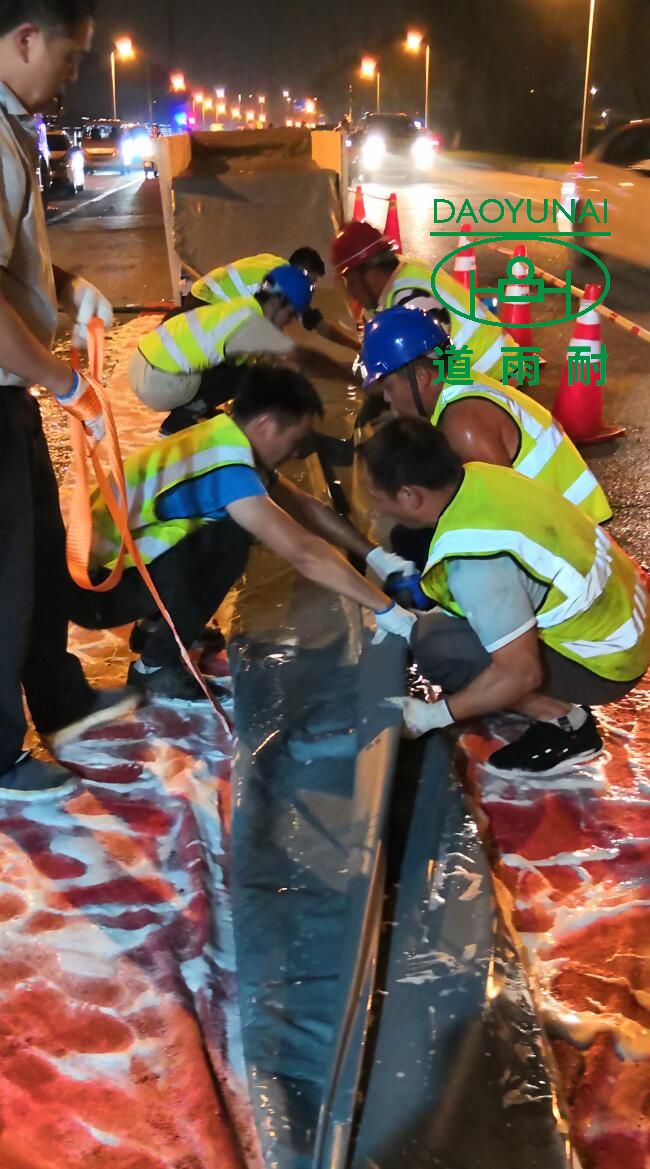

UV CIPP installation for repairing underground pipelines by no excavation

Apparatus required for UV curing construction:

1-UV curing equipment: core equipment, highly integrated electrified computer automatic control, Internet of things, ensuring stable and reliable performance. The power reaches 12000W ultraviolet lamp, and the whole process of video monitoring.

2-Blower: used to fully expand the hose to ensure that the material is fully deployed. 500 cubic meters per hour is required.

3-Generator: three-phase generator to ensure the power of outdoor operation. 48kW output power, equipped with voltage regulator.

4-Hose material: UV curing hose, base material: glass fiber and resin, fully pre impregnated, high elastic modulus.

5-Curing repair integrated vehicle: integrate curing equipment, blower, generator, etc. into the vehicle.

Pretreatment:

According to the prepared pipeline inspection and evaluation scheme, the pipeline that needs to be repaired is selected as the highest priority and pretreated to ensure that the pipeline is clean without ponding. It mainly includes plugging, cleaning, water plugging, pumping and spot repair.

Then test again to ensure that the next step can be carried out. While the robot detects, a long enough rope is brought into the pipeline.

Daoyunai Energy Saving Technology Limited has been committed to manufacturing trenchless CIPP UV cure systems with liners and CCTV inspection crawlers for underground pipelines to service customers all over the world.

The product range covers four series and more than 20 models in the underground pipeline trenchless repair industry:

1. UV curing and repair integrated system D919: LED lamp curing and high-voltage mercury lamp curing.

2. UV cure liner: from diameter DN200 up to DN1800

3. Hot water cure liner: impregnated liner to invert by water gravity and cure by hot water

4. Pipeline inspection robots crawler D18 and D18s: CCTV video inspection of pipeline defects

5. Pipeline periscope D16S: quickly  view the internal defects of the pipeline

Headquartered in Shanghai, Daoyunai has a number of independent intellectual property rights and also has a manufacturing base and R&D and testing center in Suqian City, Jiangsu Province, covering an area of more than 35000 square meters, which fully implements the international quality management system.

Focused on producing trenchless CIPP system with liners and inspection CCTV

Committed to providing solutions for reducing costs and improving efficiency
