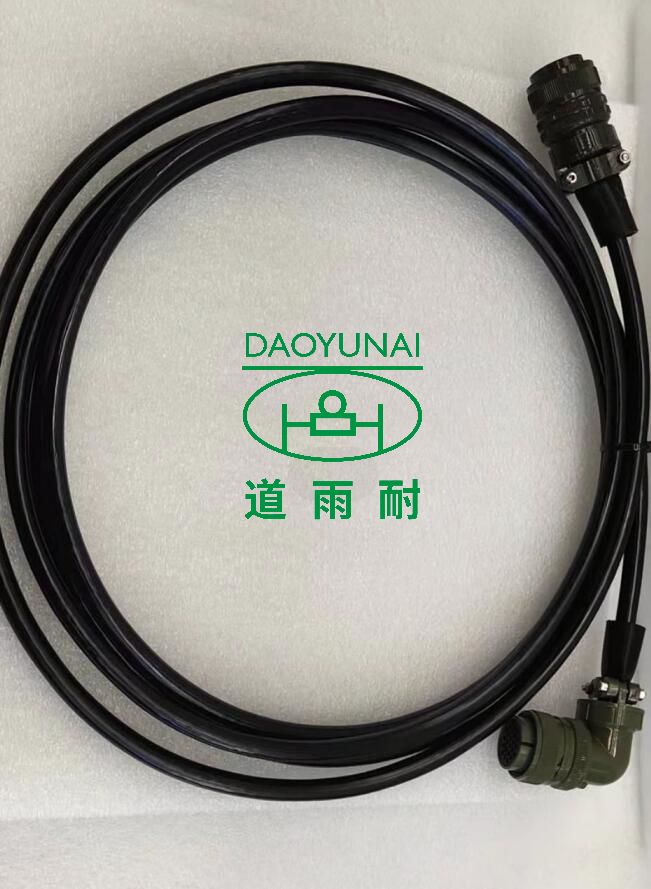

Five meters cable for CCTV pipeline inspection and repair equipment
robot D18
Precautions for CCTV pipeline inspection robot inspection
Some technical requirements put forward in industrial and local
documents such as technical specifications for TV and sonar
detection and evaluation of Shanghai public drainage pipelines
edited by the Shanghai Municipal Drainage Department:
1-before photographing each section of the pipeline, the Kanban
image must be taken first. The Kanban shall indicate the name of
the road or the location of the inspected object, the number of
starting points and ending points, the inspection unit, pipe
diameter and time, etc.
2-the traveling direction of the crawler shall be consistent with
the water flow direction, and the water level in the pipe shall not
exceed 20% of the pipe diameter.
3-when the pipe diameter is less than or equal to 200mm, the
traveling speed of direct photography should not exceed 0.1m/s;
When it is greater than 200mm, the traveling speed of direct
photography should not exceed 0.15m/s.
4-the moving track of the camera lens of the crawler shall be on
the central axis of the detection pipeline, and the moving track of
the lens shall be at the central position of two-thirds of the
pipeline height, and the deviation shall not be greater than ± 10%.
5-when the crawler enters the starting position of the detection
pipeline, the cable meter must be reset to zero.
6-the cable shall be marked with a distance scale. After each
section of detection is completed, the correction value of the
cable counting meter shall be calculated.
7-at the starting position, the name of the road section
(position), the number of the inspection well at the starting and
ending points, the pipe diameter, the attribute, and other contents
shall be input as required.
8-when photographing in a straight direction, the horizontal
direction of the image must be kept in a positive direction, and
the photographing angle and focal length should not be changed in
the middle.
9-various defects, special structures, and detection conditions
shall be interpreted, measured, and recorded in detail. The camera
shall stay for more than 10s during the shooting process of
defects.
| Function | Connecting the controller and the cable drum |
| Length | 5m |
| Color | Black |
