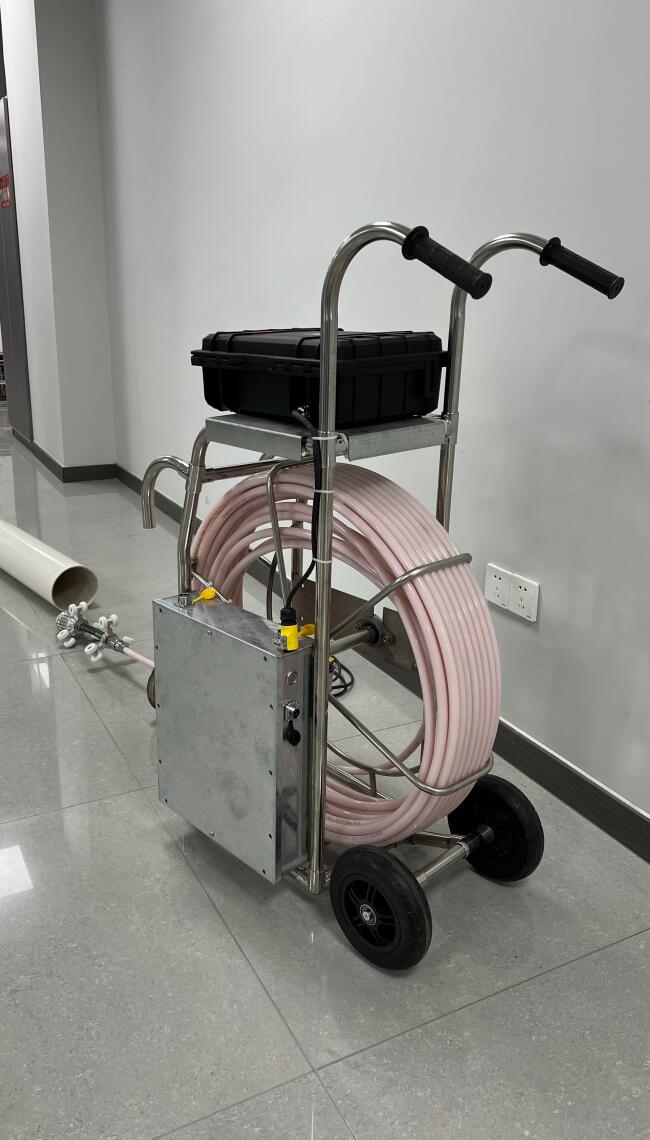

Push Rod Mini UV CIPP curing equipment for lateral sewer 20-50m
with HD camera
Push rod-type UV curing equipment, which is designed for repairing
lateral drainage pipes. It can accommodate pipe diameters ranging
from DN100 to DN250 and lengths between 20 and 50 meters.
This type of equipment, the push rod type UV curing equipment,
works based on a process called UV CIPP curing. Here's how it
generally operates:
Preparation:
The damaged section of the pipe is first cleaned and prepared for
repair. Any debris or obstructions are removed to ensure a smooth
surface.
Insertion:
Insert the UV liner by pulling in or compressed air.
The UV curing equipment, typically mounted on a push rod, is
inserted into the liner to reach the end.
UV Light Curing:
Once the impregnated fiberglass liner and the equipment are in
place, UV light is used to harden the resin. The UV light activates
the photoinitiators in the resin, causing it to harden quickly.
Curing Process:
The UV light is usually emitted from LEDs within the equipment. The
light is directed onto the resin-infused area, where it cures the
resin in a short amount of time, typically within minutes.
Completion: After the total liner has been fully cured, the UV
curing equipment is removed from the pipe, leaving behind a newly
reinforced and repaired section of the pipeline.
This method is efficient, as it allows for quick repairs without
the need for extensive excavation, making it a popular choice for
rehabilitating damaged pipes.
| Application | Commercial buildings, schools, hospital, resorts, houses, narrow
spaces, vertical drainage pipes, lateral pipes |
| Power supply | 110V-220V city power |
| LED | Two, one for small DN100-175, the other one for big DN200-250 |
